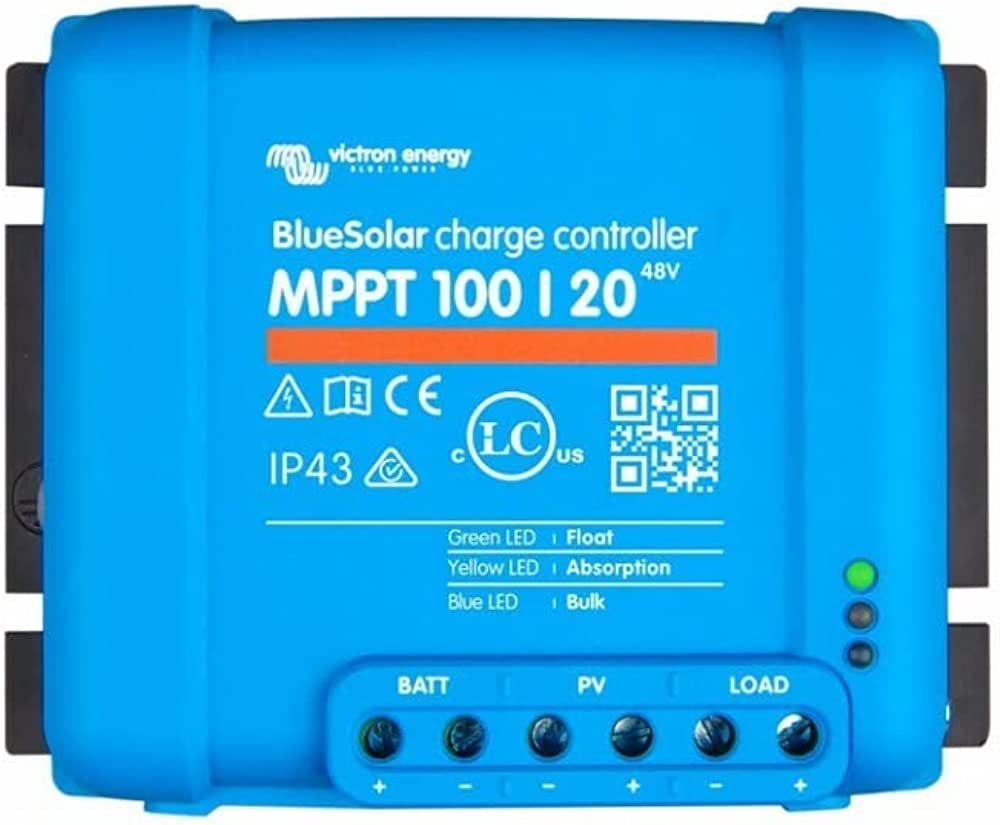

BlueSolar Charge Regulator MPPT Solar charge controller for 12V and 24V batteries Ultra fast Maximum Power Point Tracking (MPPT) Especially in overcast conditions when light intensity is constantly changing, an ultra-fast MPPT controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point detection in case of partial shading. In case of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to settle on a local MPP. However, this may not be the optimal MPP. The BlueSolar device's innovative algorithm will always maximize energy output by adjusting to the optimal MPP. Excellent efficiency Efficient passive cooling without fans. Maximum efficiency over 98%. Utilize maximum charging current up to +40°C (104°F). Internal temperature sensor adjusts constant and charge retention voltages depending on temperature. Flexible charging algorithms Fully programmable charging algorithm (refer to software information), plus eight pre-programmed algorithms selectable via a rotary knob (refer to our manual for more details). Real-time monitoring with accessories Monitoring can be done with the appropriate accessories, either with a "ColorControl panel" or via a Bluetooth connection and a smartphone. See our range of accessories and the corresponding operating instructions.

BlueSolar Charge Regulator MPPT Solar charge controller for 12V and 24V batteries Ultra fast Maximum Power Point Tracking (MPPT) Especially in overcast conditions when light intensity is constantly changing, an ultra-fast MPPT regulator improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an intelligent battery management algorithm can be selected: see Battery Life. The load output is short-circuit proof. Some loads (especially inverters) are best connected directly to the battery. Inverter remote control is best connected to the load output. A special interface cable may be required, please refer to the manual. Battery Life: intelligent battery management If the solar charge regulator is not able to charge the battery to its full capacity within a day, the battery status will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charge) will damage a lead-acid battery within a few weeks or months.The Battery Life algorithm monitors the battery's state of charge and if necessary, day after day, raises the load disconnect threshold (i.e., disconnects the load sooner) until the energy gained is sufficient to charge the battery to near 100%. From this point, the threshold for disconnecting the load is modulated so that charging to near 100% is achieved approximately once a week. Monitoring and control The charge regulator also features a programmable battery charging algorithm and a day/night time control with light dimming option. Monitoring can be done with the appropriate accessories either with a remote control or via a Bluetooth connection and a smartphone. See our range of accessories and the corresponding instruction manuals.

Victron Energy Charging Socket Stainless Steel 16A/250V AC The Victron Shore Power Socket 16A is designed specifically for the boat and RV market. This model has a high quality stainless steel facing and is compatible with all Victron shore power cables.

The Victron Energy Dual Terminal Stud M8-linked set red/ black are used for high current distribution and also serve as connections for batteries or DC devices. Technical data Connection bolt: 8mm Max. current carrying capacity: 150A Dimensions (H/W/D): 45 x 43 x 32 mm Weight: 0.07 kg

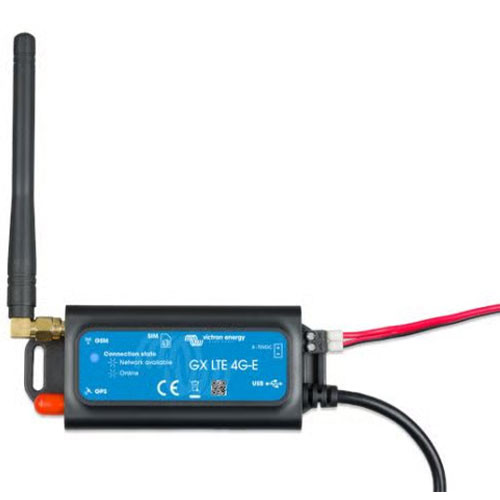

The GX-GSM is a modem & GPS accessory for Victron GX monitoring products. It is a cellular modem that provides mobile internet for the system and connection to the VRM portal. It works on 2G, 3G and 4G networks and includes a built-in GPS receiver.When the optional GPS antenna is installed, the system can be both located and geographically constrained via the VRM portal.Note that many telecom operators are in the process of shutting down their 3G networks.

Victron Energy GX-Panels - Gehäuse für Wandmontage 65x120mm

Victron Energy MEGA fuse 150A/32V (5 pieces)

Victron Energy MEGA Fuse 200A/32V (5 pieces)

Victron Energy MEGA fuse 250A/32V (5 pieces)

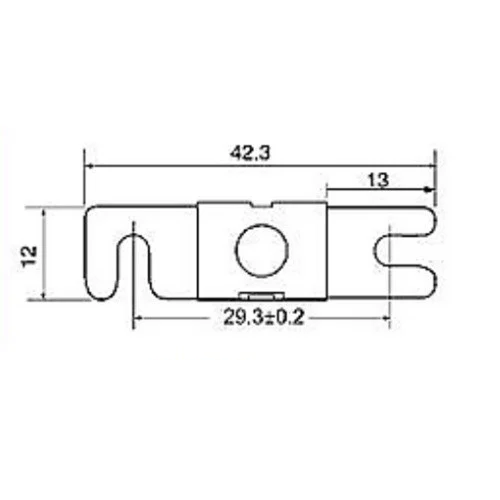

MIDI fuse 60A/32V (5 pieces)

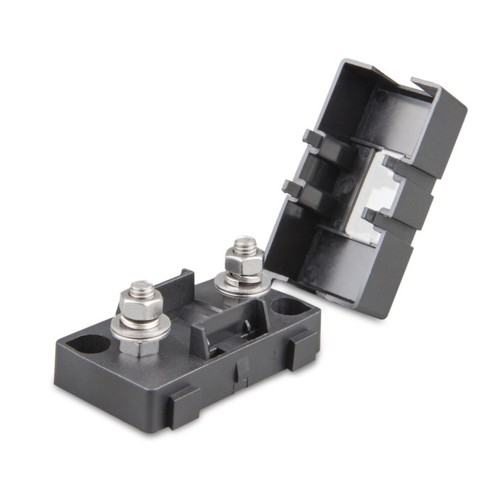

Victron Energy MIDI Fuse Holder Socket

Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). PowerControl work with limited generator power, limited shore or mains power The Multi Control remote control panel can be used to set the maximum shore or generator current to be drawn. The MultiPlus then takes into account other connected AC consumers and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist "power boost" of generators and shore power support (800VA/1200VA/1600VA only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries. High switch-on power This is required for switching on loads with high inrush currents such as voltage converters for LED lamps, halogen lamps or power tools. Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the multi will turn off at zero load or when only a light load is present and turn back on for a short period every two seconds. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again. Programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low).

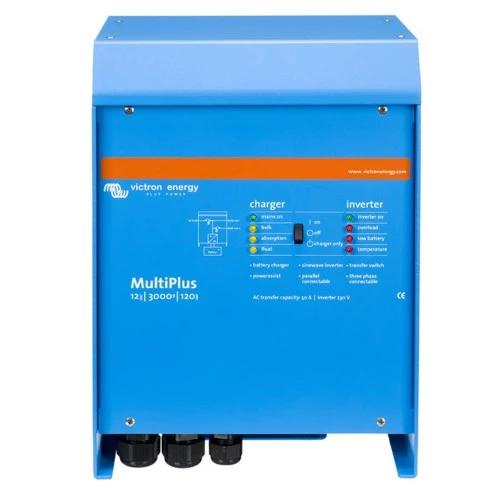

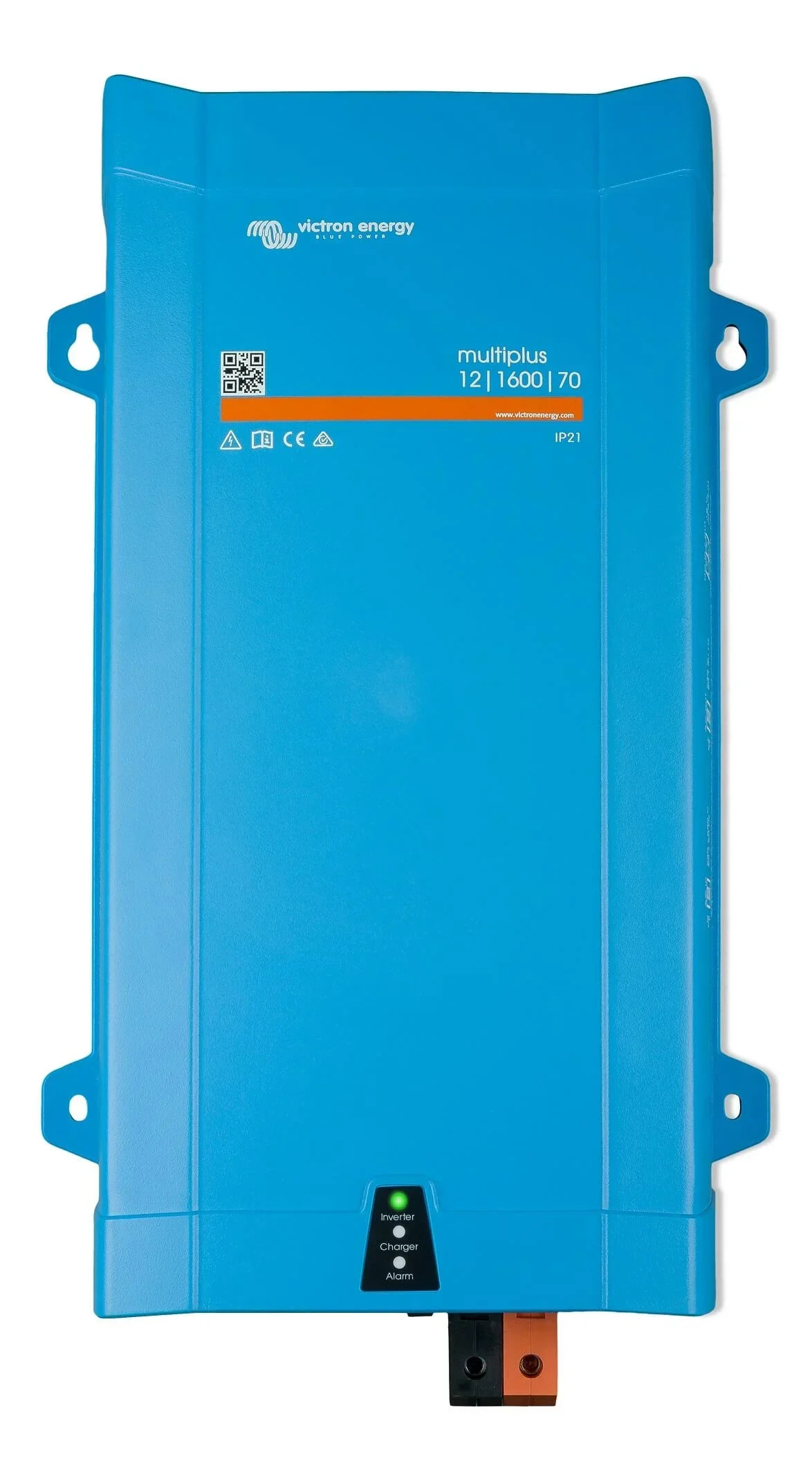

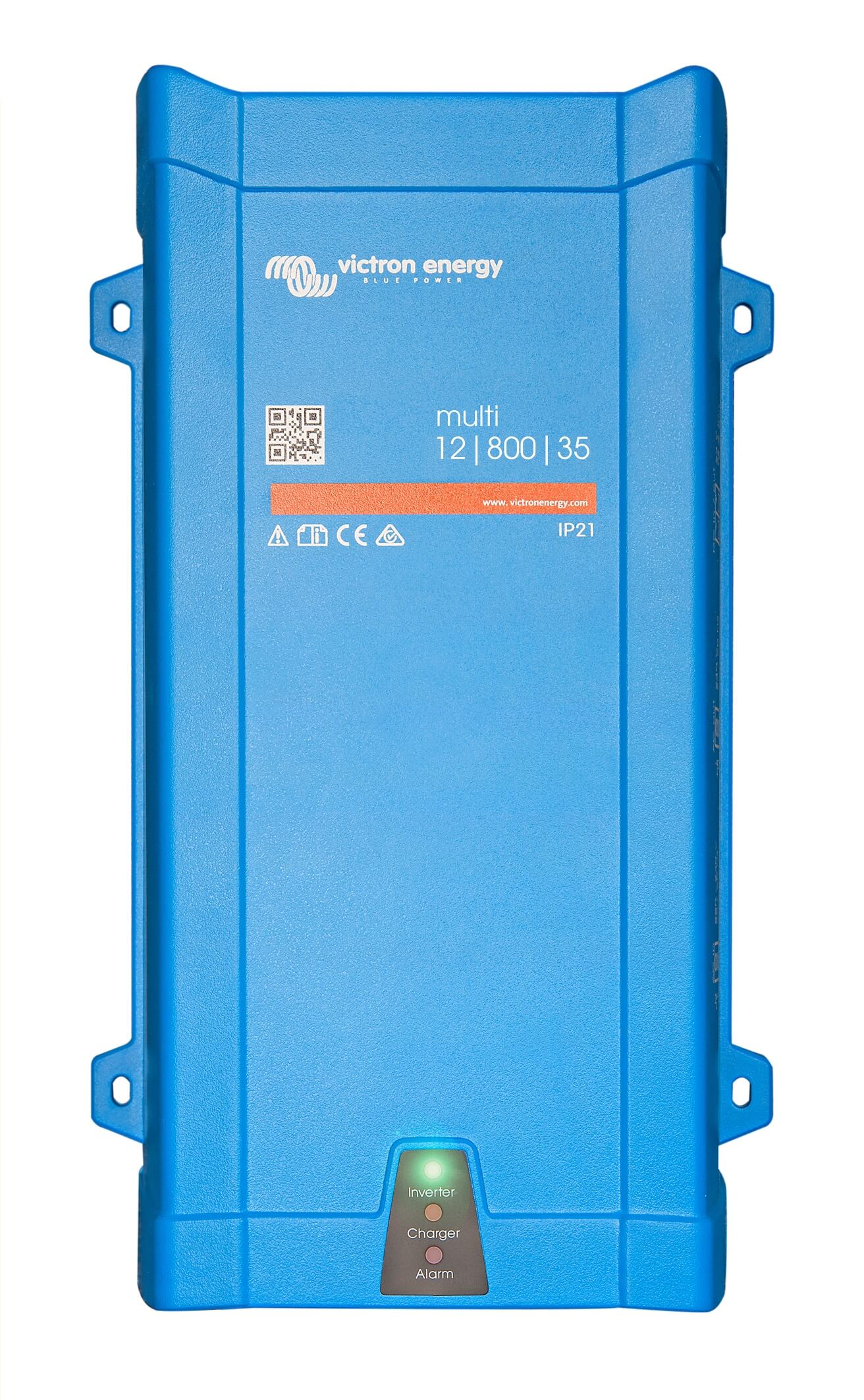

MultiPlusInverter / Charger Versatile use The MultiPlus is a high performance pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology and a high speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect from overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation

MultiPlusInverter / Charger Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). PowerControl work with limited generator power, limited shore or mains power The Multi Control remote control panel can be used to set the maximum shore or generator current to be drawn. The MultiPlus then takes into account other connected AC consumers and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist "power boost" of generators and shore power support (800VA/1200VA/1600VA only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries. High switch-on power This is required for switching on loads with high inrush currents such as voltage converters for LED lamps, halogen lamps or power tools. Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or when only a light load is present and turn back on for a short period every two seconds. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again. Programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low).

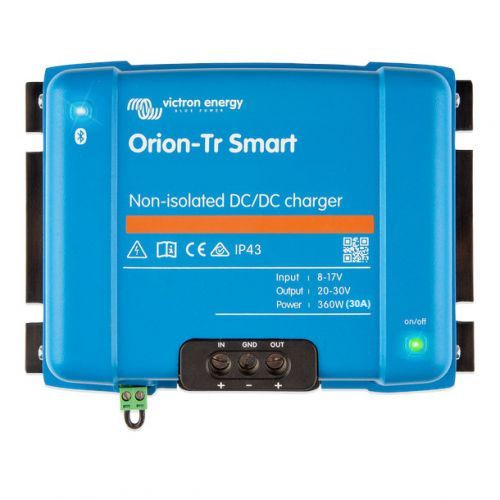

DC-DC Charger Orion-Tr Smart DC/DC Charger   Suitable for Bluetooth Smart Monitoring, changing settings and updating the charger when new software functions become available can be done with any Bluetooth enabled smartphone, tablet or other device. Fully programmable - Battery charging algorithm (configurable) or fixed output.- Intelligent generator compatibility: engine run detection. Adaptive 3-stage charging algorithm: constant current -constant voltage -maintenance. For lead acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery fully charges.For lithium batteries, the recording time is fixed, by default 2 hours.Alternatively, a fixed output voltage can be selected.Remote on/off A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the H (right) terminal of the two-pin plug can be connected to a battery positive terminal or the L (left) terminal of the two-pin plug can be connected to the battery negative terminal (or to the body of a vehicle, for example). All models are short-circuit proof and can be connected in parallel to increase output current. An unlimited number of units can be connected in parallel. Overtemperature protection The output current is reduced at high ambient temperatures. Protection class IP43 When the screw terminals on the device are installed facing downwards. Screw terminals No special tools are required for installation. Input protection fuse (non-replaceable)

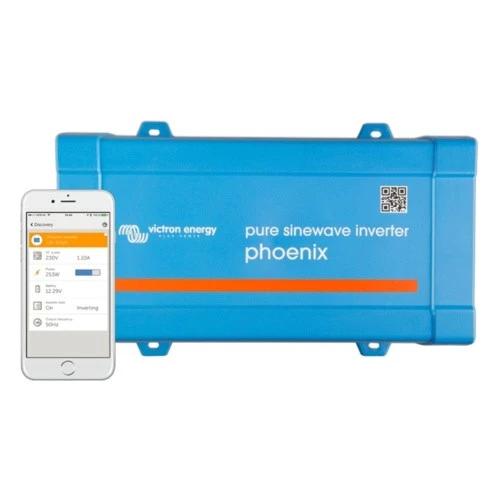

InverterPhoenix Inverter VE.Direct   VE.Direct communication port The VE.Direct port can be connected to the following devices: With a computer (VE.Direct to USB interface cable required). With Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Blu etooth smart dongle required). Fully configurable: Thresholds to trigger and reset low battery alarms. Thresholds to turn off and restart at low battery voltage levels. Dynamic shutdown: load-dependent shutdown threshold value. Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor. Monitoring: Input and output voltage and current Alarm Proven reliability The full bypass additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). High inrush power This is needed for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). If the load exceeds a preset threshold during this time, the inverter remains switched on. Remote on/off switching A remote on/off switch can be connected with a two-pin connector or between the positive terminal of the battery and the left contact of the two-pin connector. Load switching to other AC sources: The automatic load switch For smaller powers, we recommend the Filax automatic transfer switch. Computers and other sensitive electronic equipment can thus continue to operate practically without interruption, since the switching times are very short (less than 20ms).

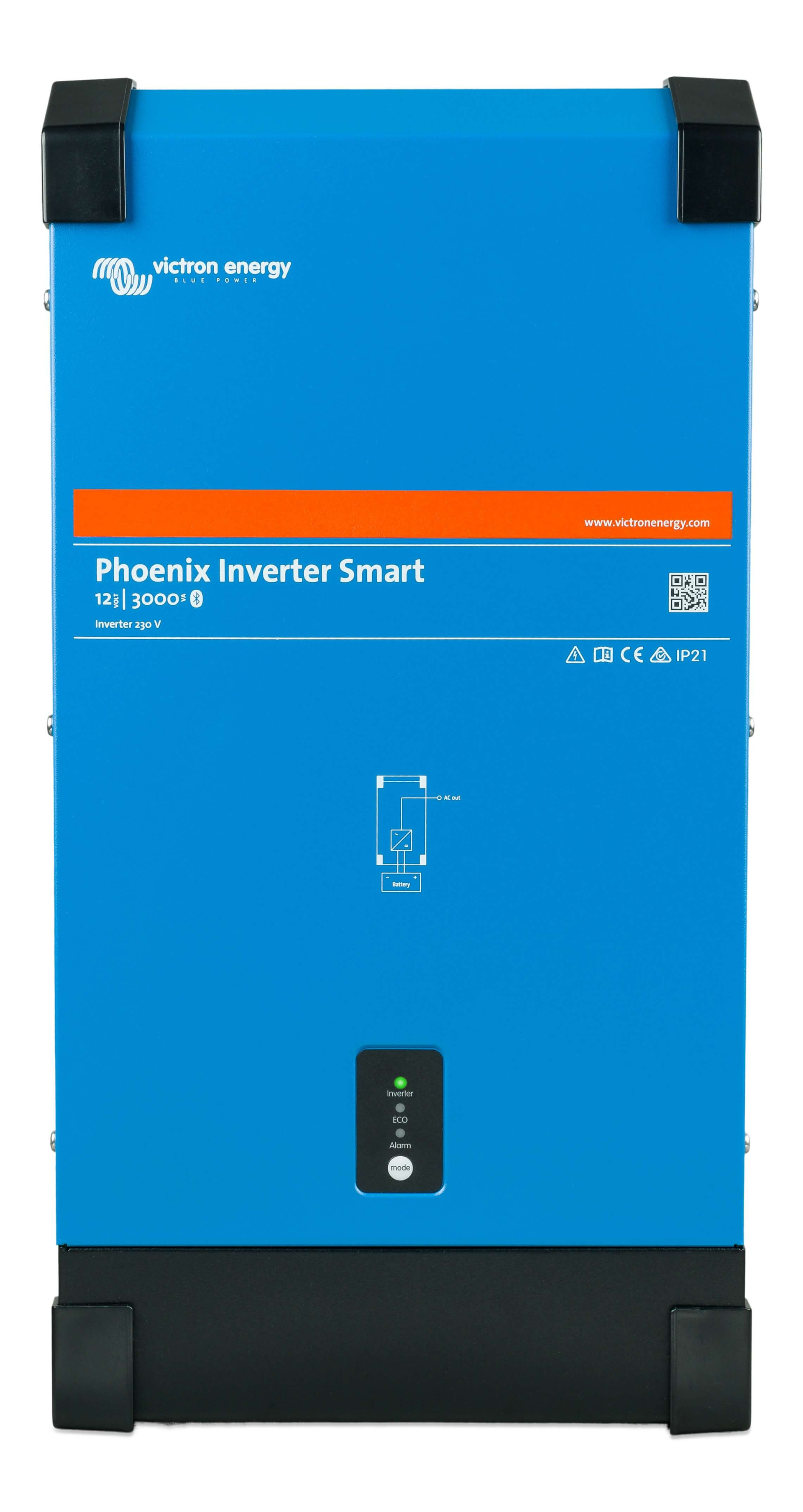

Built-in Bluetooth function: Fully configurable via a tablet or smartphone. Low battery voltage alarm Low battery voltage shutdown and restart thresholds Dynamic shutdown: load-dependent shutdown threshold value Output voltage: 210 - 245V Frequency: 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor Alarm relay Monitoring: input and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable is required) to configure and monitor the same parameters Proven reliability The full bypass in addition with a ring transformer topology has been proven for years.The inverters are short-circuit proof and protected from overheating (whether caused by overload or ambient temperature). High inrush power This is required for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable). If the load exceeds the preset threshold during this time, the inverter remains on. Remote on/off switching A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the H (left) terminal of the two-pin connector can be connected to a battery positive terminal or the L (right) terminal of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example).

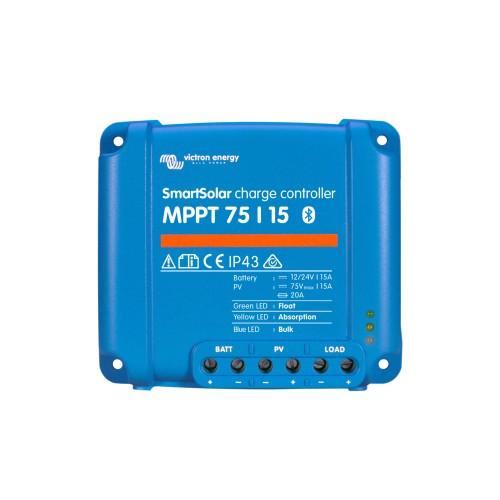

SmartSolar Charge Regulator MPPT   Ultra-fast Maximum Power Point Tracking (MPPT) Especially in overcast conditions when light intensity is constantly changing, an ultra-fast MPPT controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Load output Battery overcharging can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an intelligent battery management algorithm can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within one day, the battery status will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charge) will damage a lead-acid battery within a few weeks or months. The BatteryLife algorithm monitors the state of charge of the battery and if necessary, day by day, it raises the threshold for disconnecting the load (i.e., the load is disconnected earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point on, the load disconnect threshold is modulated so that charging to near 100% is achieved about once a week. Built-in Bluetooth Smart: No dongle needed. The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

SmartSolar Charge Regulator MPPTSolar charge controller for 12V and 24V batteries   Ultra-fast Maximum Power Point Tracking (MPPT) Especially in overcast conditions when light intensity is constantly changing, an ultra-fast MPPT controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point detection in case of partial shading. In case of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to settle on a local MPP. However, this may not be the optimal MPP. The BlueSolar device's innovative algorithm will always maximize energy output by adjusting to the optimal MPP. Excellent efficiency One cooling fan. Maximum efficiency at over 98 Flexible charging algorithms Fully programmable charging algorithm (also refer to the software page on our website) and eight pre-programmed algorithms that can be selected via a rotary knob (see our manual for more details). Comprehensive electronic protection Overheating protection and load reduction at high temperatures. PV short circuit and PV reverse polarity protection. PV reverse current protection.

SmartSolar Charge Regulator MPPT   Ultra-fast Maximum Power Point Tracking (MPPT) Especially in overcast conditions when light intensity is constantly changing, an ultra-fast MPPT controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Load output Battery overcharging can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an intelligent battery management algorithm can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within one day, the battery status will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charge) will damage a lead-acid battery within a few weeks or months. The BatteryLife algorithm monitors the state of charge of the battery and if necessary, day by day, it raises the threshold for disconnecting the load (i.e., the load is disconnected earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point on, the load disconnect threshold is modulated so that charging to near 100% is achieved about once a week. Built-in Bluetooth Smart: No dongle needed. The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

SmartSolar Charge Regulator MPPTSolar charge controller for 12V and 24V batteries   Ultra-fast Maximum Power Point Tracking (MPPT) Especially in overcast conditions when light intensity is constantly changing, an ultra-fast MPPT controller improves energy output by up to 30% in comparison to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Load output Battery overcharging can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an intelligent battery management algorithm can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within one day, the battery status will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charge) will damage a lead-acid battery within a few weeks or months. The BatteryLife algorithm monitors the state of charge of the battery and if necessary, day by day, it raises the threshold for disconnecting the load (i.e., the load is disconnected earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point on, the load disconnect threshold is modulated so that charging to near 100% is achieved about once a week. Built-in Bluetooth Smart: No dongle needed. The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

The 1,8m VE.Direct Cable from Victron (ASS030530203) is needed to connect devices that should communicate with each other via the VE-Direct port. For example, the BlueSolar controllers and the MPPT Control remote control panel. So the following connections can be made with it: Victron BlueSolar MPPT controller to Victron Color Control GX panel. Victron BlueSolar MPPT controller to MPPT Control remote panelBMV70xxx series to Color Control GX Panel BMV60xxx series to Color Control GX Panel Phoenix Inverter 12V 24V 48V 250W-500W to Color Control GX Panel VE.Direct cables are not included with these device series and are available in lengths from 0.3 to 10m. Scope of delivery:1x Victron ASS030530203 01,8m VE.Direct Cable

Victron Energy VE.Direct cable 10m - one side angled 90 degrees

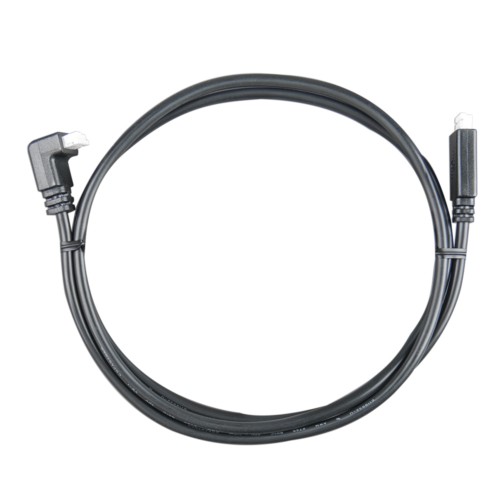

Victron Energy VE.Direct Cable 3m - single angled 90 degrees
