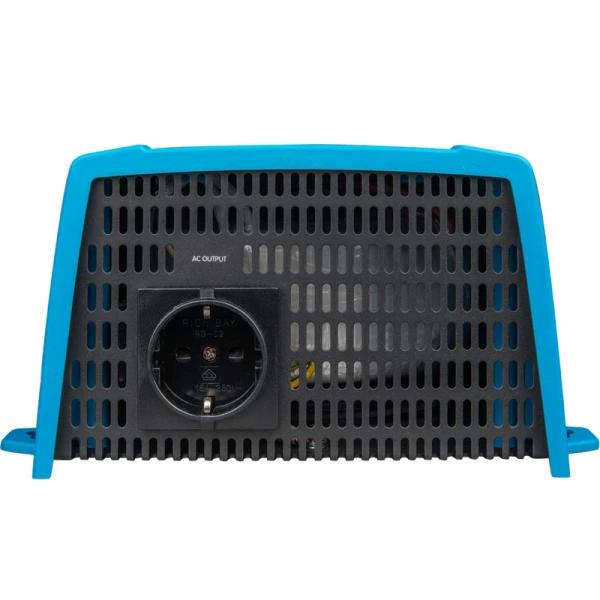

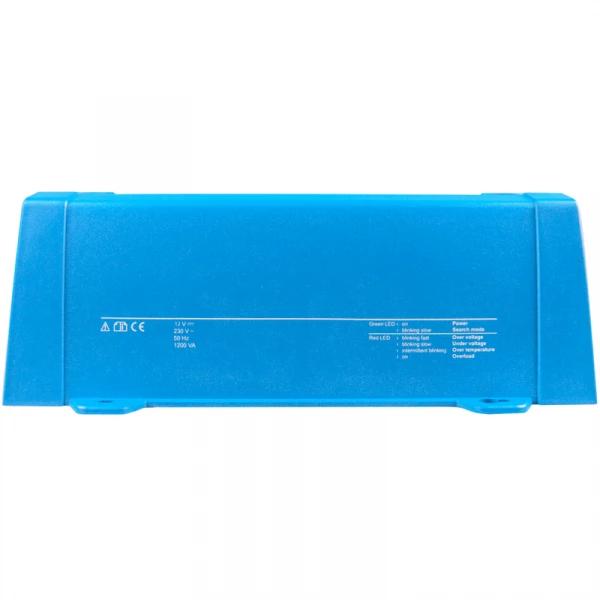

Victron Energy Phoenix Inverter 12/1200 230V VE.Direct Schuko
Victron Energy Phoenix Inverter 12/1200 230V VE.Direct Schuko. VE.Direct communication port, ECO mode and load switching to other AC sources.
€497.42*
Ready to ship immediately, Delivery time 1-3 working days
Free shipping
Product number:
PIN122121200
Product information "Victron Energy Phoenix Inverter 12/1200 230V VE.Direct Schuko"
Inverter
Phoenix Inverter VE.Direct
VE.Direct communication port
The VE.Direct port can be connected to the following devices:
- With a computer (VE.Direct to USB interface cable required).
- With Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Blu etooth smart dongle required).
Fully configurable:
- Thresholds to trigger and reset low battery alarms.
- Thresholds to turn off and restart at low battery voltage levels.
- Dynamic shutdown: load-dependent shutdown threshold value.
- Output voltage 210 - 245V
- Frequency 50 Hz or 60 Hz
- Threshold for ECO mode on/off and ECO mode sensor.
Monitoring:
- Input and output voltage and current
- Alarm
Proven reliability
The full bypass additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature).
High inrush power
This is needed for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools.
ECO mode
In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). If the load exceeds a preset threshold during this time, the inverter remains switched on.
Remote on/off switching
A remote on/off switch can be connected with a two-pin connector or between the positive terminal of the battery and the left contact of the two-pin connector.
Load switching to other AC sources: The automatic load switch
For smaller powers, we recommend the Filax automatic transfer switch. Computers and other sensitive electronic equipment can thus continue to operate practically without interruption, since the switching times are very short (less than 20ms).
Characteristics "Victron Energy Phoenix Inverter 12/1200 230V VE.Direct Schuko"
| Color: | Blau |
|---|---|
| Dimensions: | 36,2 x 11,7 x 23,2 cm |
| Extras: | LED Anzeige, Bluetooth Monitoring, Steuerung per APP |
| Max. Peak Leistung: | 2200 Watt |
| Netzvorangschaltung: | Ja (mit Filax Automatic Transfer Switch) |
| Power Output: | 1000 Watt |
| Sicherheitsmerkmale : | Ausgangskurzschluss, Überlast, Batteriespannung zu hoch, Batterie-Spannung zu niedrig, Temperatur zu hoch, 230 VAC am Wechselrichterausgang, Zu hohe Brummspannung am Eingang |
| Sinus Kurve: | reine Sinuskurve |
| Weight (kg): | 7,4 |
Dokumente / Downloads
