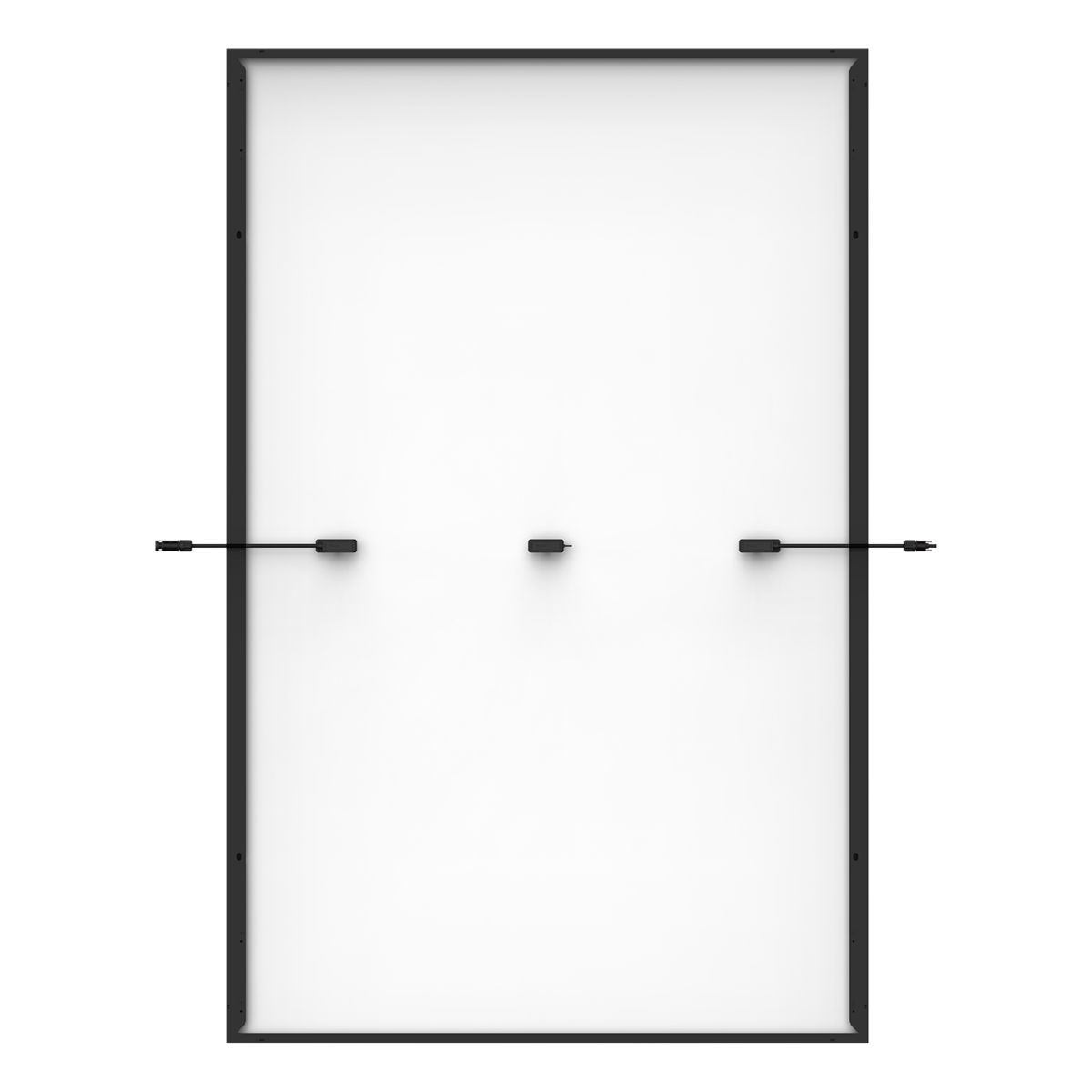

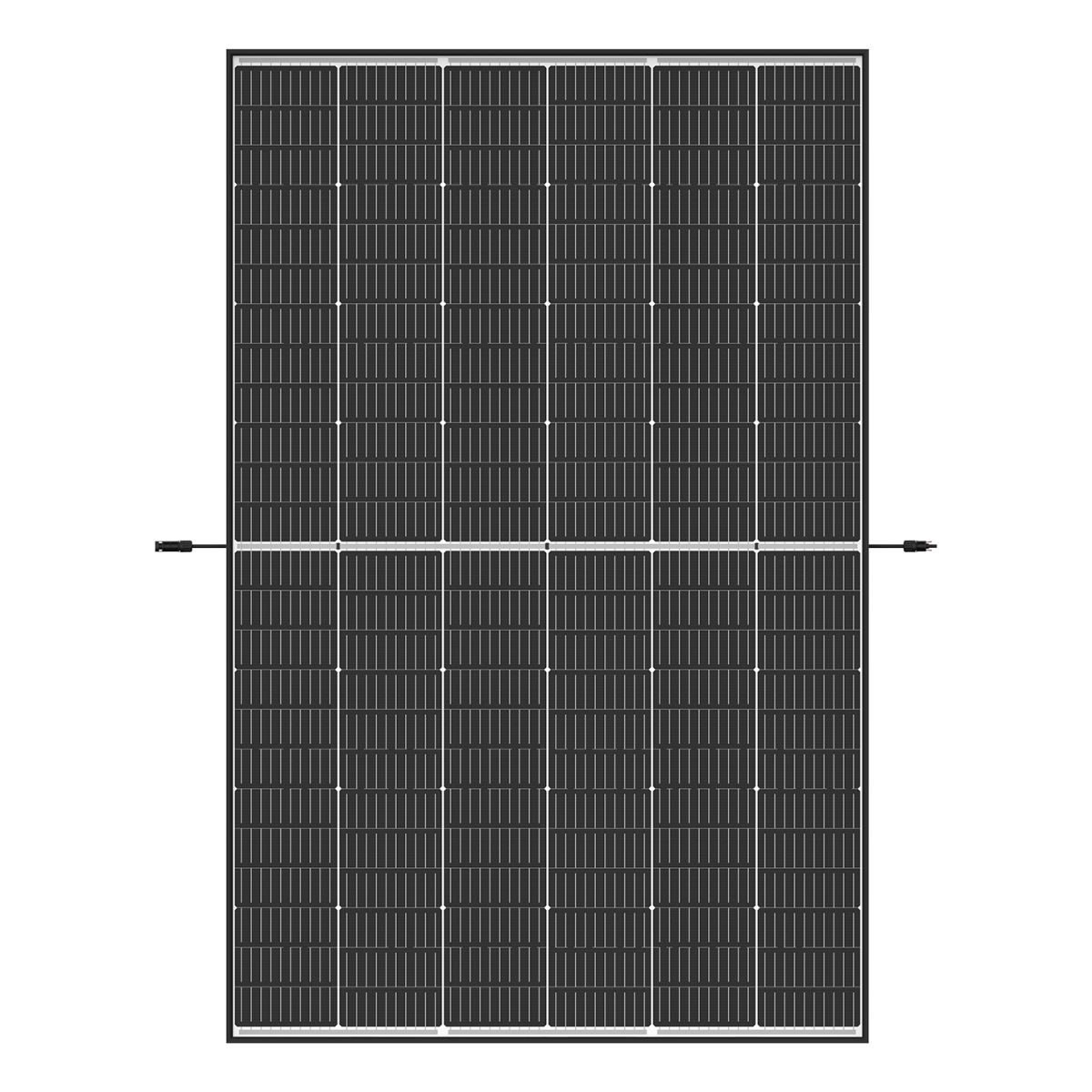

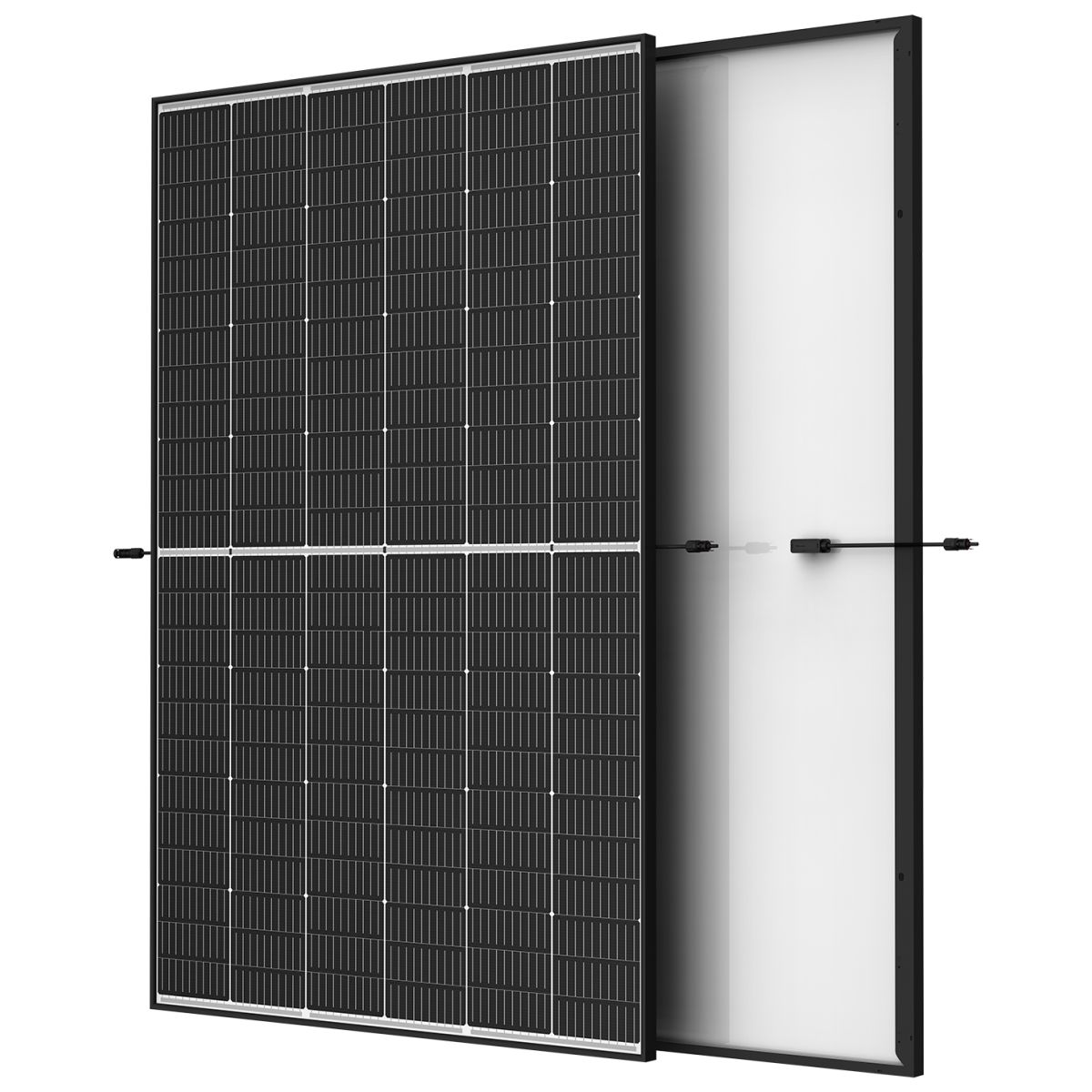

Trinasolar Vertex S 425WP Half-Cut 1500V Black Frame MC4
Trinasolar Vertex S 425WP Half-Cut 1500V Black Frame MC4
- Trina Vertex S Mono 425 W - Half-Cut 1500V (Black Frame) (MC4)
- PV collector 1762mm x 1134mm
- 15 years product warranty
- Max 2% degradation in 1 year
- Max 0.5% annual degradation in years 2-25
€167.23*
Ready to ship immediately, Delivery time 1-3 working days
Free shipping
Product number:
BW900781-MwSt
Product information "Trinasolar Vertex S 425WP Half-Cut 1500V Black Frame MC4"
Based on the advanced technology of the Vertex platform, the updated Vertex S module delivers up to 435 W of output power and achieves a module efficiency of 21.8%. With its high-density interconnection technology, it is perfectly designed to meet the power, efficiency, size, weight, appearance, mechanical stress and reliability requirements of rooftop installations. It offers an optimal ratio of power, size and weight.
Small size, big performance
- Up to 425 W peak power, 21.8% module efficiency with high-density cell interconnection technology.
- Multi-busbar technology for more absorption, lower series resistance, improved current dissipation and increased reliability
- Excellent low light performance (IAM) due to optimized cell processes and materials
Universal solution for residential and commercial roofs
- High compatibility with available inverters, optimizers and mounting systems
- Easy handling due to perfect size and low weight. Optimized transport costs
- Lower installation costs with increased performance and efficiency
- Flexible installation solutions for system deployment
High reliability
- 6,000 Pa snow load (test load)
- 4,000 Pa wind load (test load)
| Brand | Trina Solar |
| Manufacturer | Trina Solar |
| Country of manufacture | China |
| Warranty in years | 15 |
| HS Code | 425 Wp |
| Back | white sheet |
| Panel type | Glasfoil |
| Number of cells | 144 |
| Frame color | Black |
| Glass with anti-reflective coating | Yes |
| Connector | MC4/TS4 |
| Length (mm) | 1,762 |
| Width (mm) | 1,134 |
| Height (mm) | 30 |
| Weight (kg) | 22 |
