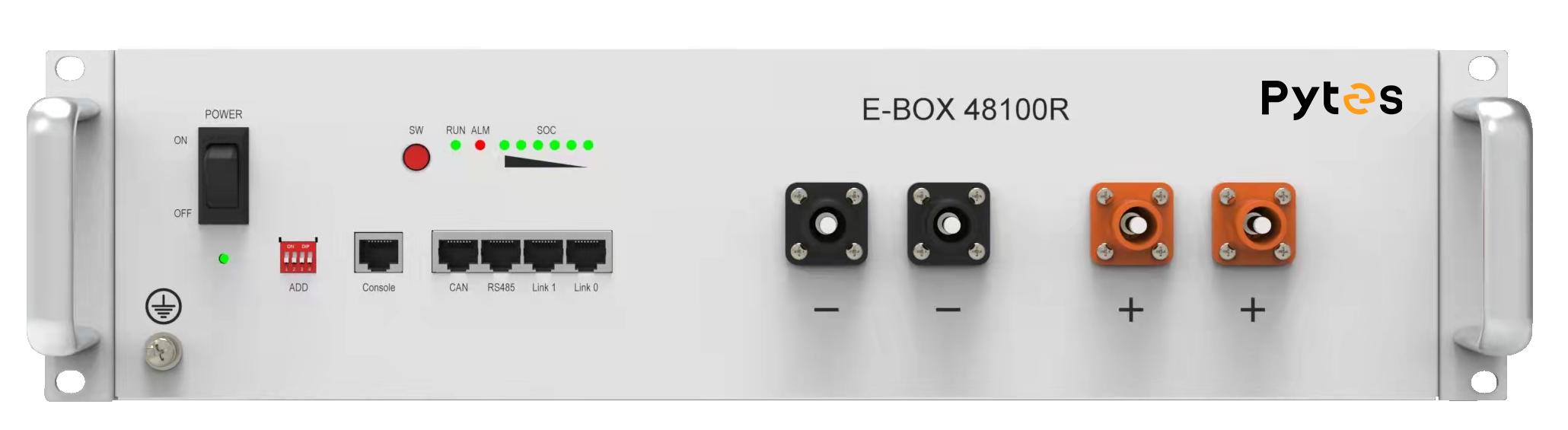

The new generation LFP battery of the E-series for home energy storage system It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance, and could be deployed to the building block of energy storage system by being assembled in parallel. The E-Box offers an intelligent, configurable emergency power supply in the event of power failures and supplies your home with solar energy day and night.It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecom stations. Back-up power supply With the E-Box-48100R you can comfortably survive power failures. With the emergency power supply, electrical energy is fed into the power circuit when it can no longer be supplied by the grid. All important consumers connected to the E-Box-48100R can continue to be operated temporarily in this way. Intelligent energy management The sole production of energy is not enough. Rather, it must be used effectively and profitably, which can be guaranteed by the E-Box-48100R. With this energy management, the required performance can be achieved with minimal energy consumption. Intelligent algorithms optimize the lifespan of the system. In addition, power consumption can be measured, monitored and managed in real time. Wide Compatibility The E-Box-48100R is compatible with the 16 largest inverters on the market. Technical data: Chemistry LFP Nominal Voltage 51,2 V Voltage Range 47,5 - 58 V Nominal Capacity 100 Ah Nominal energy 5,12 kWh Cycle life ≥ 6000 cycles Measurements (L x W x H) 440 x 620 x 117

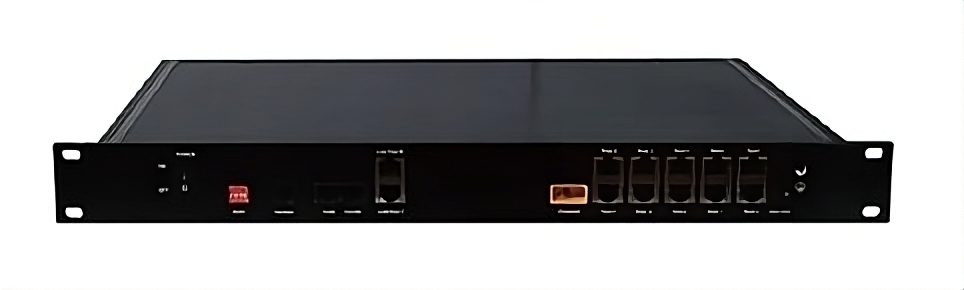

With the HUB you can connect up to 7 battery groups, each group consisting of a maximum of 8 E-Boxes-4850 or E-Boxes-48100 in parallel connection. The connections of the individual groups converge in the HUB, so that they can run from it as a central point collected in the direction you want.

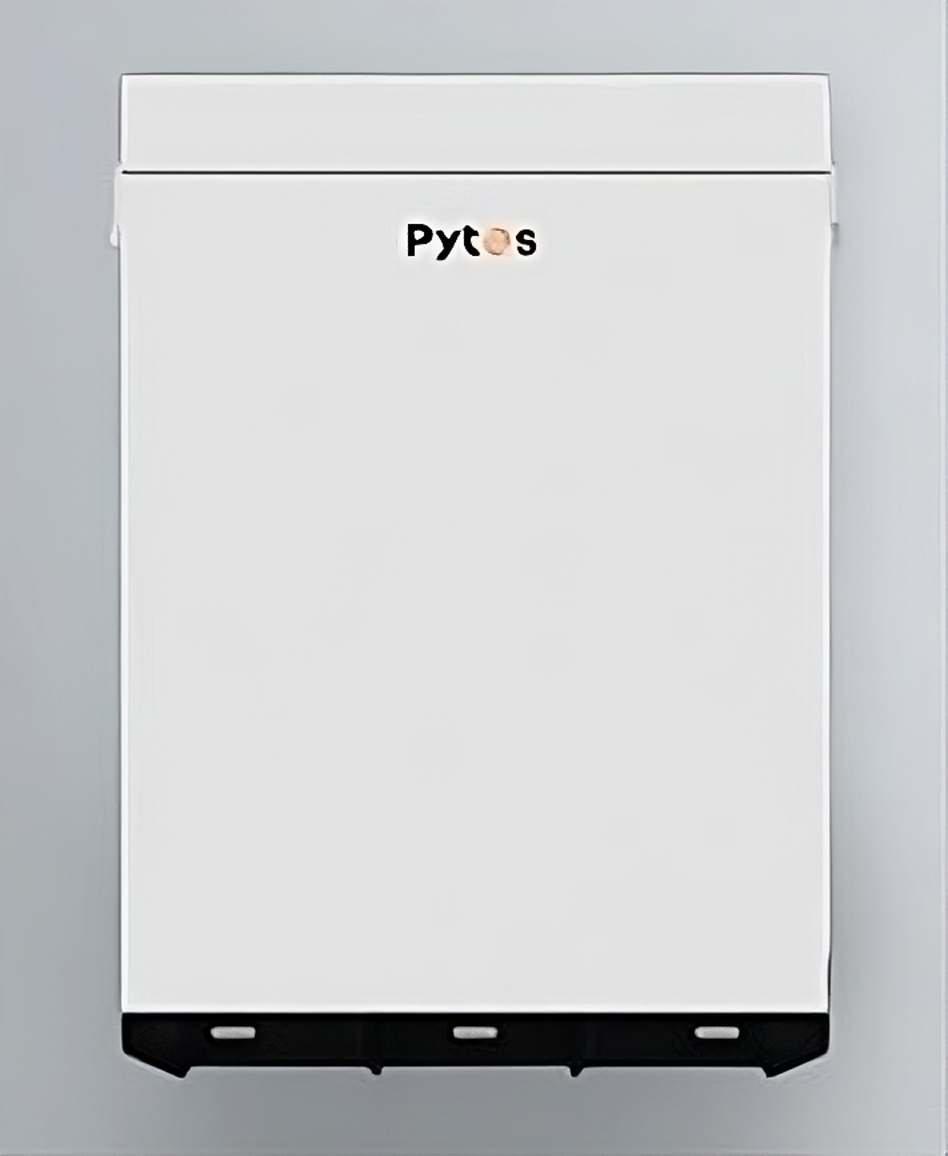

The ECOX R-BOX is a modern energy storage solution for the home. It has a total usable energy capacity of 10 kWh. Other product features: quick and easy installation, a compact, elegant design that matches the home, many expansion options. The ECOX R-BOX offers an intelligent, configurable emergency power supply in case of power outages and supplies smart homes with solar energy day and night. Technical Data: Total Capacity 10,24 kWh Usable capacity 9,22 kWh Nominal voltage 51,2 V max. charge/ discharge current 100 A
