Inverter

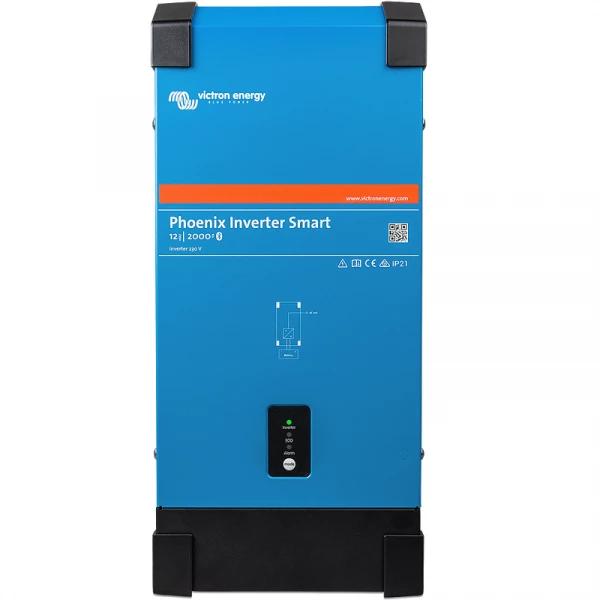

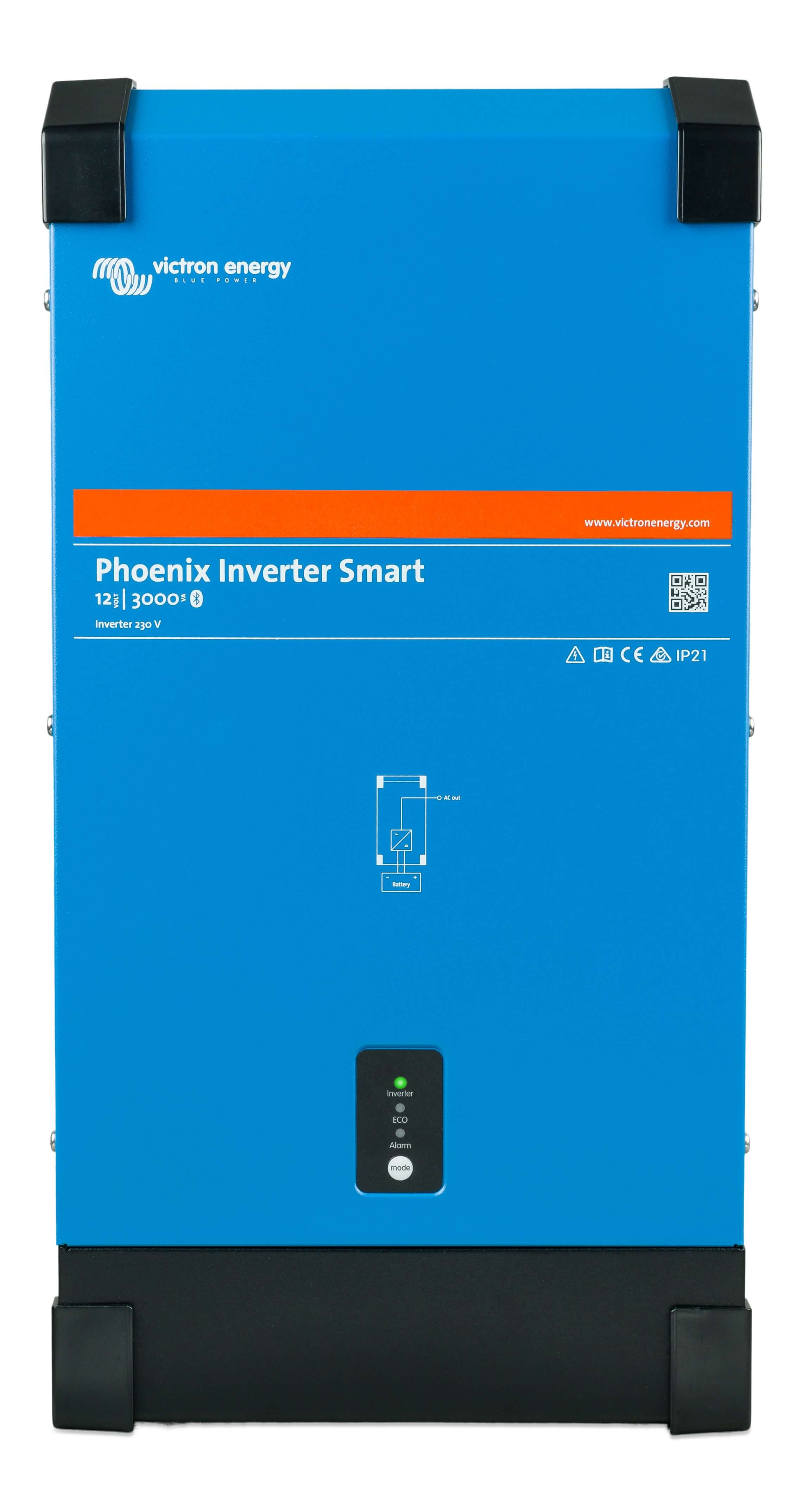

InverterPhoenix Inverter Smart   Built-in Bluetooth function: fully configurable via a tablet or smartphone Low battery voltage alarm Low battery voltage shutdown and restart thresholds Dynamic shutdown: load-dependent shutdown threshold value Output voltage: 210 - 245V Frequency: 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor Alarm relay Monitoring: input and output voltage, load and alarms The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable required) to configure and monitor the same parameters. Proven reliability The full bypass in addition with a ring transformer topology has been proven for years.The inverters are short-circuit proof and protected from overheating (whether caused by overload or ambient temperature). High inrush power This is required for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable). If the load exceeds the preset threshold during this time, the inverter remains on. Remote on/off switching A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the H (left) terminal of the two-pin connector can be connected to a battery positive terminal or the L (right) terminal of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example).

Victron Phoenix Voltage Converter 300W Pure Sine Wave High-quality sine wave inverter for a stable 230V supply for small consumers Victron's Phoenix 12/375 VE.Direct is a high-quality sine wave inverter ideal for powering small 230V consumers on board. The continuous output power is 300 watts, which is sufficient for micro consumers such as laptops, battery chargers, mini PCs and other devices with small power requirements. However, it is also ideal for high-sensitivity radio, receiver as well as medical equipment. Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). VE.Direct communication port The VE.Direct port can be connected to the following devices: With a computer (VE.Direct to USB interface cable required). To Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Bluetooth smart dongle required). Fully configurable: Thresholds to trigger and reset low battery alarms. Thresholds to turn off and restart at low battery voltage levels. Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor monitoring: Input and output voltage and current alarms Other features at a glance: Power 300 W Brand quality from the Netherlands Output voltage with mains quality (pure sine wave) Compromise and trouble-free operation of small consumers such as laptop or chargers or mini PCs. Compact, light, robust and reliable programmable via VE.Direct connection numerous information readable via VE.Direct connection

Built-in Bluetooth function: Fully configurable via a tablet or smartphone. Low battery voltage alarm Low battery voltage shutdown and restart thresholds Dynamic shutdown: load-dependent shutdown threshold value Output voltage: 210 - 245V Frequency: 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor Alarm relay Monitoring: input and output voltage, load and alarms VE.Direct communication port The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable is required) to configure and monitor the same parameters Proven reliability The full bypass in addition with a ring transformer topology has been proven for years.The inverters are short-circuit proof and protected from overheating (whether caused by overload or ambient temperature). High inrush power This is required for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable). If the load exceeds the preset threshold during this time, the inverter remains on. Remote on/off switching A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the H (left) terminal of the two-pin connector can be connected to a battery positive terminal or the L (right) terminal of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example).

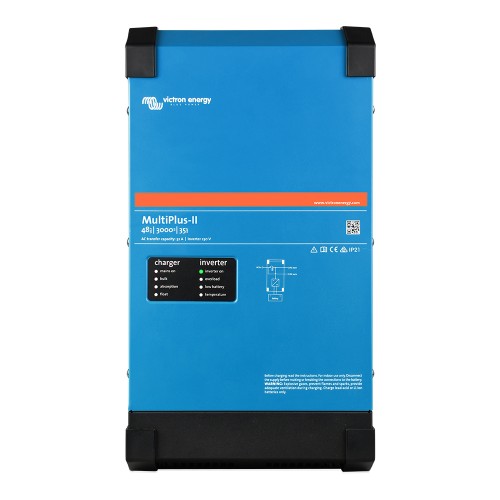

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the functions of the MultiPlus plus an option of an external current transformer to implement the PowerControl, as well as PowerAssist functions or to optimize self-consumption with external current sensing (max. 32 A). It also offers all the features of the MultiGrid with the built-in anti-islanding function and an ever-growing list of countries where it is approved for feeding. A MultiPlus, plus ESS (Energy Storage System) function The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It offers all the functions of the MultiPlus, plus an external current sensor option that extends the function of the PowerControl and PowerAssist to 32 amps. It also offers all the features of the MultiGrid with the built-in anti-islanding feature and an ever-growing list of countries where it is approved for power feeding. Remote monitoring and control You can monitor and control your MultiPlus-II and system(s) on-site (LAN) or remotely anywhere in the world via the Internet using the free VRM App and the free VRM Portal website. It can be accessed from a phone, tablet, laptop or PC running a wide variety of operating systems. There are countless control options: For example, with the required Color Control GX or Venus GX, you can adjust your MultiPlus-II or have a back-up generator start automatically.

Victron Phoenix Voltage Converter 400W High-quality sine wave inverter for a stable 230V supply for small consumers Victron's Phoenix 12/500 VE.Direct is a high-quality sine wave inverter ideal for powering small 230V consumers on board. The continuous output power is 400 watts, which is sufficient for micro consumers such as laptops, battery chargers, mini PCs and other devices with small power requirements. However, it is also ideal for high-sensitivity radio, receiver as well as medical equipment. Proven reliabilityThe complete bridging additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). VE.Direct communication portThe VE.Direct port can be connected to the following devices: With a computer (VE.Direct to USB interface cable required). To Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Bluetooth smart dongle required). Fully configurable: Thresholds to trigger and reset low battery alarms. Thresholds to turn off and restart at low battery voltage levels. Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor monitoring: Input and output voltage and current alarms Other features at a glance: Power 400 W Brand quality from the Netherlands Output voltage with mains quality (pure sine wave) Compromise and trouble-free operation of small consumers such as laptop or chargers or mini PCs. Compact, light, robust and reliable programmable via VE.Direct connection numerous information readable via VE.Direct connection

Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). PowerControl work with limited generator power, limited shore or mains power The Multi Control remote control panel can be used to set the maximum shore or generator current to be drawn. The MultiPlus then takes into account other connected AC consumers and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist "power boost" of generators and shore power support (800VA/1200VA/1600VA only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries. High switch-on power This is required for switching on loads with high inrush currents such as voltage converters for LED lamps, halogen lamps or power tools. Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the multi will turn off at zero load or when only a light load is present and turn back on for a short period every two seconds. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again. Programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low).

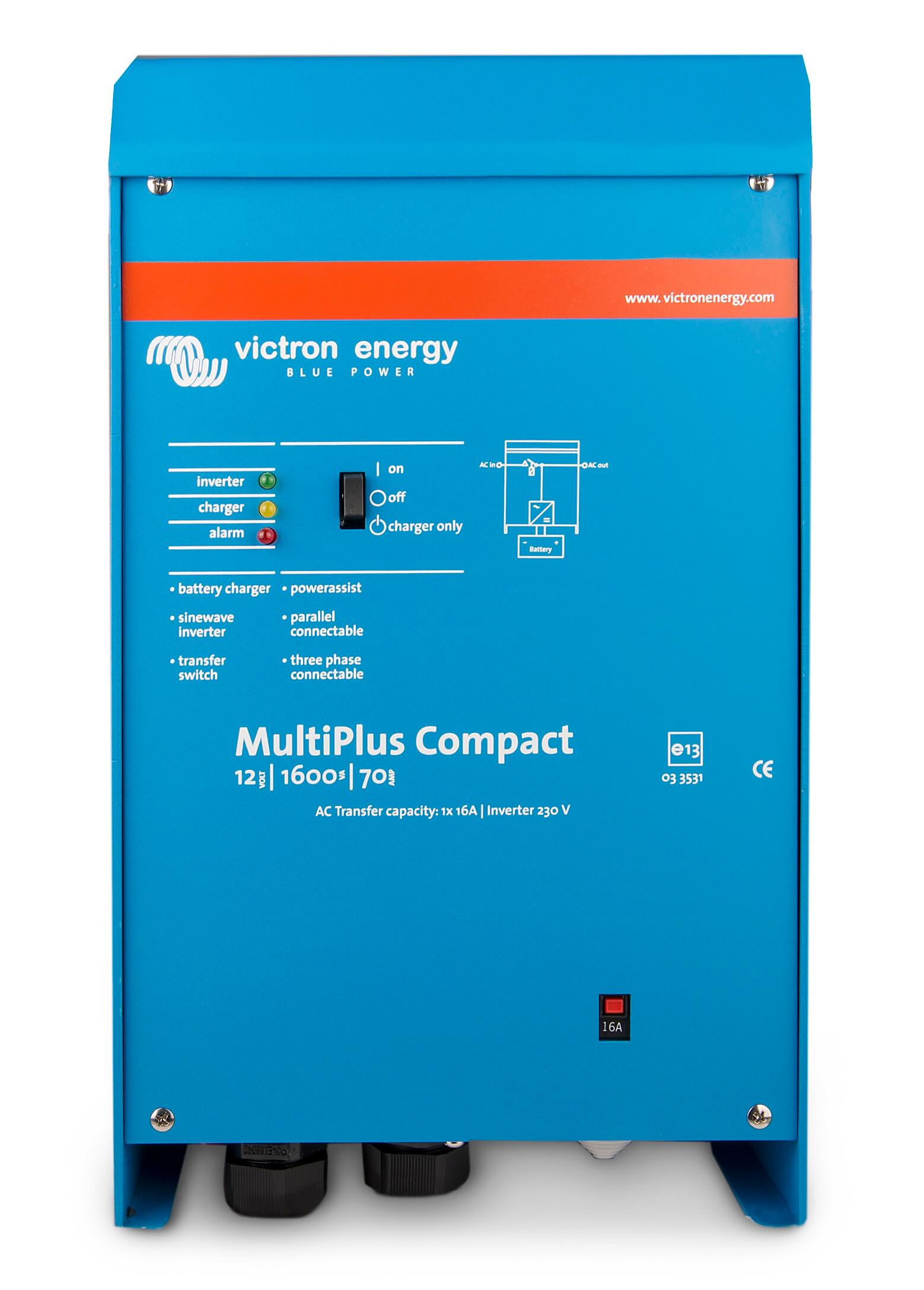

MultiPlusInverter / Charger   Versatile use The MultiPlus Compact 12/1600/70-16 is a high performance pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology, and a high speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect against overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation.

Victron Phoenix Voltage Converter 200W High-quality sine wave inverter for a stable 230V supply for small consumers Victron's Phoenix 12/250 VE.Direct is a high-quality sine wave inverter ideal for powering small 230V consumers on board. The continuous output power is 200 watts, which is sufficient for micro consumers such as laptops, battery chargers, mini PCs and other devices with small power requirements. However, it is also ideal for high-sensitivity radio, receiver as well as medical equipment. Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). VE.Direct communication port The VE.Direct port can be connected to the following devices: With a computer (VE.Direct to USB interface cable required). To Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Bluetooth smart dongle required). Fully configurable: Thresholds to trigger and reset low battery alarms. Thresholds to turn off and restart at low battery voltage levels. Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor monitoring: Input and output voltage and current alarms Other features at a glance: Power 200 W Brand quality from the Netherlands Output voltage with mains quality (pure sine wave) Compromise and trouble-free operation of small consumers such as laptop or chargers or mini PCs. Compact, light, robust and reliable programmable via VE.Direct connection numerous information readable via VE.Direct connection

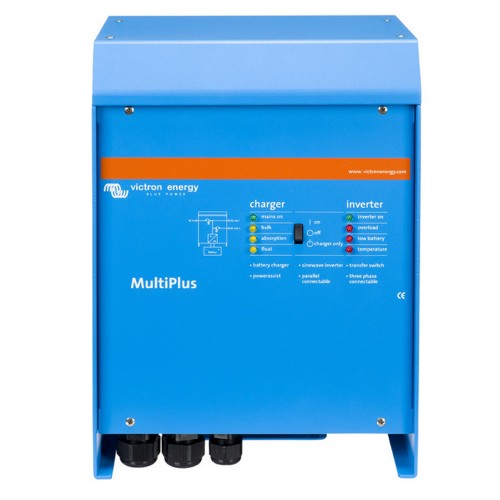

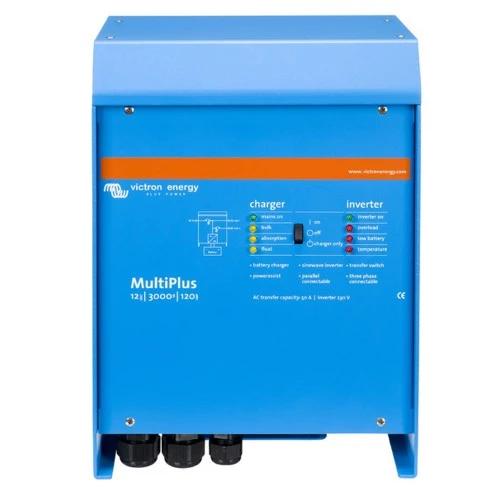

MultiPlusInverter / Charger Versatile use The MultiPlus is a high performance pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology and a high speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect from overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation

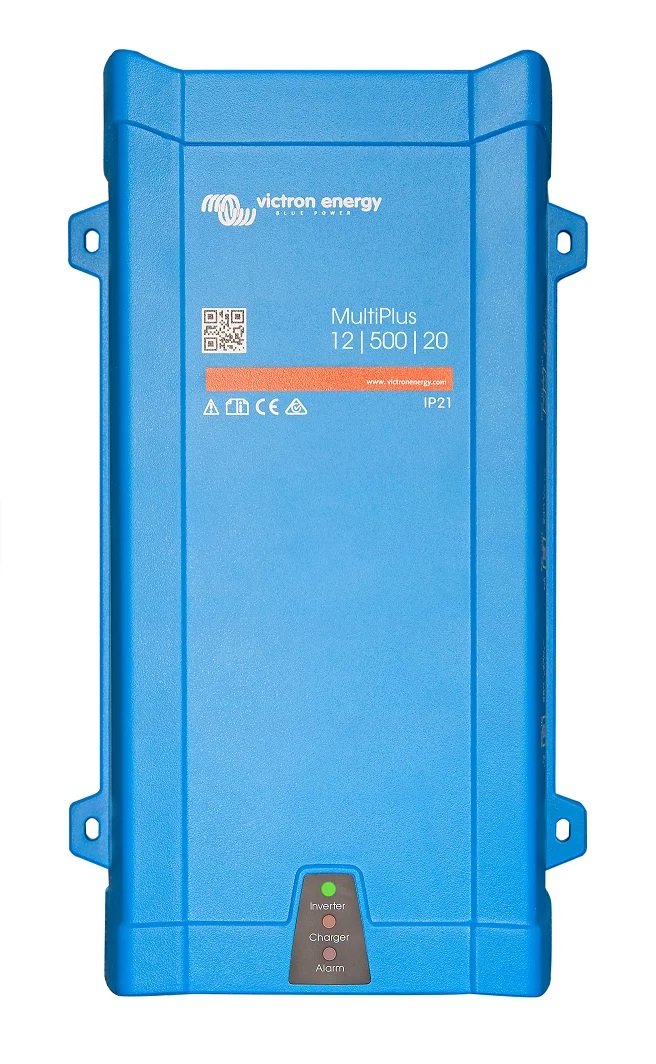

Victron MultiPlus 12/500/20-16 PMP121500000 230 V sine wave inverter and charger in one 12V charger with 20A charging current, also suitable for lithium batteries Sine wave inverter with 500VA (430W) Automatic transfer switch with 16A (switching time only 20ms) Dimensions 311x182x100 mm Weight: 4,4 kg The Victron MultiPlus 12/500 combines the function of an inverter, charger and transfer switch in one and that at a compact price.

Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). PowerControl work with limited generator power, limited shore or mains power The Multi Control remote control panel can be used to set the maximum shore or generator current to be drawn. The MultiPlus then takes into account other connected AC consumers and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist "power boost" of generators and shore power support (800VA/1200VA/1600VA only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries. High switch-on power This is required for switching on loads with high inrush currents such as voltage converters for LED lamps, halogen lamps or power tools. Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the multi will turn off at zero load or when only a light load is present and turn back on for a short period every two seconds. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again. Programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low).

Versatile use The MultiPlus is a powerful pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology and a high-speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect against overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation.

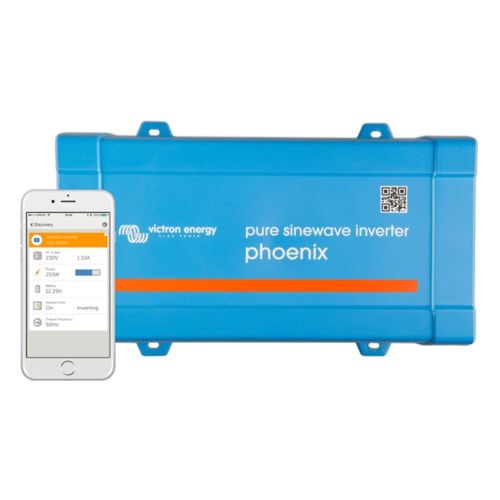

InverterPhoenix Inverter VE.Direct   VE.Direct communication port The VE.Direct port can be connected to the following devices: With a computer (VE.Direct to USB interface cable required). With Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Blu etooth smart dongle required). Fully configurable: Thresholds to trigger and reset low battery alarms. Thresholds to turn off and restart at low battery voltage levels. Dynamic shutdown: load-dependent shutdown threshold value. Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor. Monitoring: Input and output voltage and current Alarm Proven reliability The full bypass additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). High inrush power This is needed for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). If the load exceeds a preset threshold during this time, the inverter remains switched on. Remote on/off switching A remote on/off switch can be connected with a two-pin connector or between the positive terminal of the battery and the left contact of the two-pin connector. Load switching to other AC sources: The automatic load switch For smaller powers, we recommend the Filax automatic transfer switch. Computers and other sensitive electronic equipment can thus continue to operate practically without interruption, since the switching times are very short (less than 20ms).

InverterPhoenix Inverter VE.Direct   VE.Direct communication port The VE.Direct port can be connected to the following devices: With a computer (VE.Direct to USB interface cable required). With Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Blu etooth smart dongle required). Fully configurable: Thresholds to trigger and reset low battery alarms. Thresholds to turn off and restart at low battery voltage levels. Dynamic shutdown: load-dependent shutdown threshold value. Output voltage 210 - 245V Frequency 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor. Monitoring: Input and output voltage and current Alarm Proven reliability The full bypass additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). High inrush power This is needed for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). If the load exceeds a preset threshold during this time, the inverter remains switched on. Remote on/off switching A remote on/off switch can be connected with a two-pin connector or between the positive terminal of the battery and the left contact of the two-pin connector. Load switching to other AC sources: The automatic load switch For smaller powers, we recommend the Filax automatic transfer switch. Computers and other sensitive electronic equipment can thus continue to operate practically without interruption, since the switching times are very short (less than 20ms).

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the functions of the MultiPlus plus an option of an external current transformer to implement the PowerControl, as well as PowerAssist functions or to optimize self-consumption with external current sensing (max. 32 A). It also offers all the features of the MultiGrid with the built-in anti-islanding function and an ever-growing list of countries where it is approved for feeding. A MultiPlus, plus ESS (Energy Storage System) function The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It offers all the functions of the MultiPlus, plus an external current sensor option that extends the function of the PowerControl and PowerAssist to 32 amps. It also offers all the features of the MultiGrid with the built-in anti-islanding feature and an ever-growing list of countries where it is approved for power feeding. Remote monitoring and control You can monitor and control your MultiPlus-II and system(s) on-site (LAN) or remotely anywhere in the world via the Internet using the free VRM App and the free VRM Portal website. It can be accessed from a phone, tablet, laptop or PC running a wide variety of operating systems. There are countless control options: For example, with the required Color Control GX or Venus GX, you can adjust your MultiPlus-II or have a back-up generator start automatically.

Versatile use The MultiPlus is a powerful pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology, and a high-speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect against overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation.

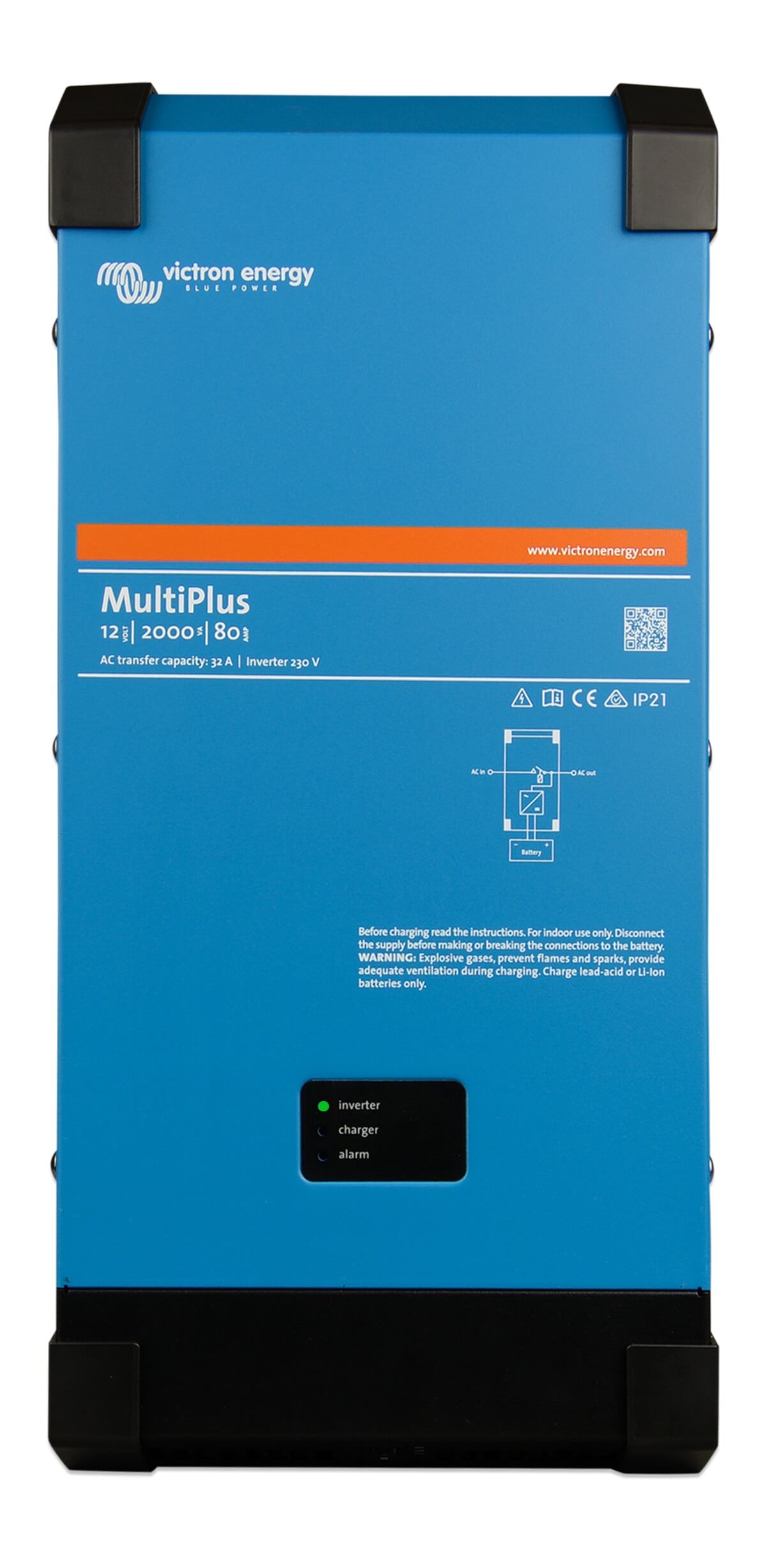

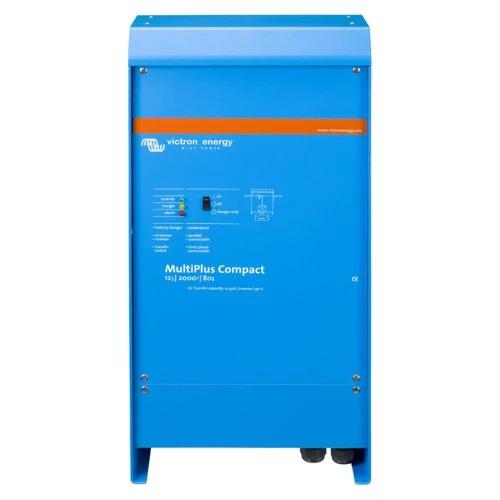

MultiPlusInverter / Charger   Multifunctional use The MultiPlus Compact 12/2000/80-30 is a high performance pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology, and a high speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect against overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation.

MultiPlusInverter / Charger Proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature). PowerControl work with limited generator power, limited shore or mains power The Multi Control remote control panel can be used to set the maximum shore or generator current to be drawn. The MultiPlus then takes into account other connected AC consumers and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist "power boost" of generators and shore power support (800VA/1200VA/1600VA only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries. High switch-on power This is required for switching on loads with high inrush currents such as voltage converters for LED lamps, halogen lamps or power tools. Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or when only a light load is present and turn back on for a short period every two seconds. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again. Programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low).

InverterPhoenix Inverter Smart   Built-in Bluetooth function: fully configurable via a tablet or smartphone Low battery voltage alarm Low battery voltage shutdown and restart thresholds Dynamic shutdown: load-dependent shutdown threshold value Output voltage: 210 - 245V Frequency: 50 Hz or 60 Hz Threshold for ECO mode on/off and ECO mode sensor Alarm relay Monitoring: input and output voltage, load and alarms The VE.Direct communication port can be connected to a computer (VE.Direct to USB interface cable required) to configure and monitor the same parameters. Proven reliability The full bypass in addition with a ring transformer topology has been proven for years.The inverters are short-circuit proof and protected from overheating (whether caused by overload or ambient temperature). High inrush power This is required for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools. ECO mode In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable). If the load exceeds the preset threshold during this time, the inverter remains on. Remote on/off switching A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the H (left) terminal of the two-pin connector can be connected to a battery positive terminal or the L (right) terminal of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example).

Versatile use The MultiPlus is a powerful pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology and a high-speed AC transfer switch in a single compact package. Models are available for the range of 800 VA to 5000 VA per module. Unique PowerAssist function The MultiPlus prevents overloading of a limited AC source. First, it automatically reduces battery charging to protect against overload. Next, it boosts the output of a generator or shore power supply with energy from the battery. Uninterruptible Power Supply (UPS) function. In the event of a mains fault or an interruption to the shore power or on-board generator, the multi's inverter is automatically switched on and takes over the supply to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. Virtually unlimited power through parallel connection Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase and split-phase operation.

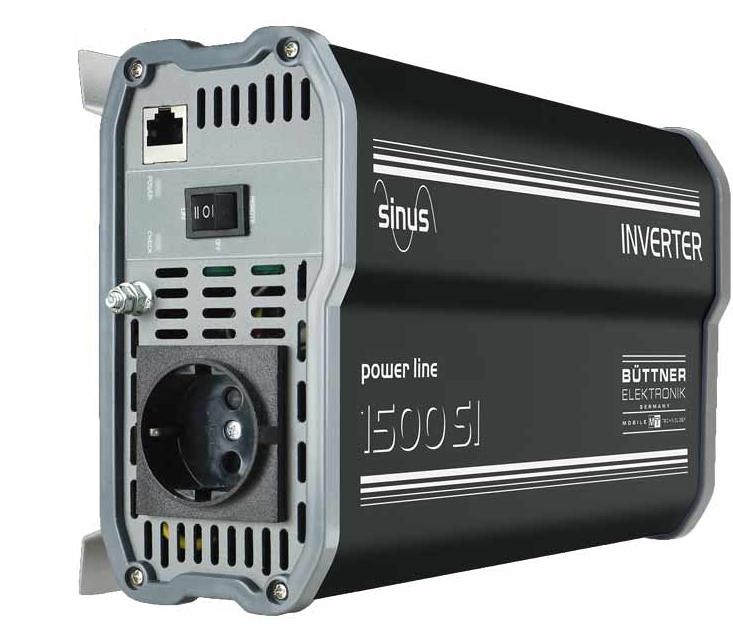

The PowerLine changeover rectifiers from Büttner Elektronik supply a pure sine wave voltage. Within the respective power window(1500 W), even sensitive loads can be operated without interference. All devices are equipped with a remote control to control the inverter from inside the room. In addition, the devices can also be started via a control input. Either directly via 12 V signal or via the battery computer MT 500 iQ (see p. 430). This means that even without a mains connection, an e-bike charger on board can be charged directly via the inverter in the event of a power surplus (e.g. solar). All safety and monitoring functions are integrated. These ensure trouble-free operation, as do the temperature-controlled high-performance fans. The no-load current consumption is very low in order to put as little strain as possible on the on-board battery.
